4. XSTAF tool management

Page Status:Development Last Reviewed:

XSTAF provide a plugin mechanism to support extending XSTAF functions.

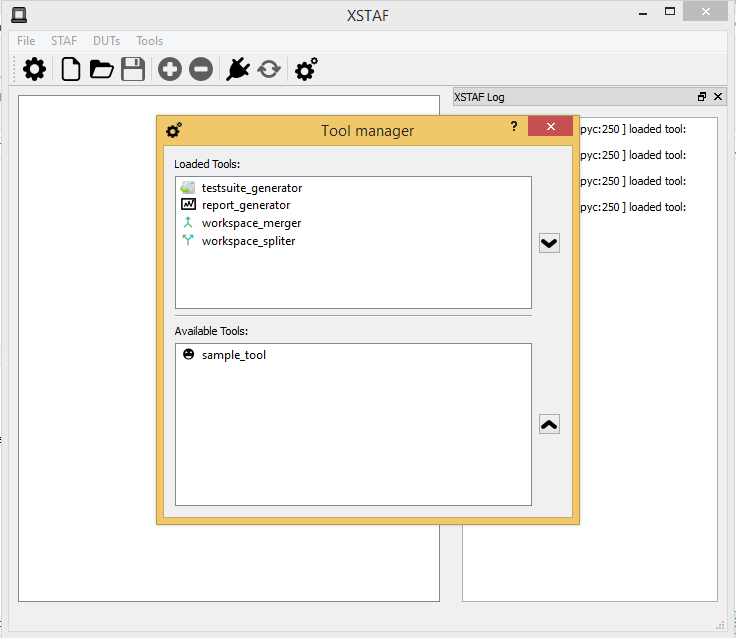

4.1. Tool manager

Tool manager is response to check the tool directory, and load the tools available. Tool manager supports load the tool dynamically, and provide tools runtime XSTAF window instance object, so tools can interact with XSTAF core.

4.2. Add custom tools

To write custom tools, you just need implement an standard interface provided by tool manager, and place your tool to tools directory.

Below is code from tools/sample_tool, it demonstrates how to implement a sample interface:

import traceback
from XSTAF.core.logger import LOGGER
from PyQt4 import QtCore, QtGui
from ui.ui_sampleDialog import Ui_SampleDialog
import ui.resources_rc

###############################
#interface for tool manager
###############################
class Tool(object):
    _description = "Sample Tool"
    main_window = None

    #this method is for tool manager to pass in the XSTAF main window runtime object
    #so in this tool, we can interact with XSTAF main window
    @classmethod
    def set_main_window(cls, main_window):
        cls.main_window = main_window

    #method for tool manager to get icon of this tool
    @staticmethod
    def icon():
        tool_icon = QtGui.QIcon()
        tool_icon.addPixmap(QtGui.QPixmap(":icons/icons/sample.png"))
        return tool_icon

    #method for tool manager to launch this tool's dialog
    @classmethod
    def launch(cls):
        try:
            LOGGER.info("Launch sample tool")
            tool_dialog = SampleTool(cls.main_window)
            tool_dialog.exec_()
        except:
            LOGGER.error(traceback.format_exc())

    #method for tool manager to get description of this tool
    @classmethod
    def description(cls):
        return cls._description

################################
#dialog class for this tool
################################
class SampleTool(QtGui.QDialog, Ui_SampleDialog):
    def __init__(self, parent):
        QtGui.QDialog.__init__(self)
        self.setupUi(self)

4.3. Built-in Tools

XSTAF provide some built-in tools for common met test functions.

4.3.1. report_generator

report generator can generate a static html report for current workspace.

4.3.2. testsuite_generator

test suite generator can generate XSTAF test suite XML file from other format, like a CSV document.

Plan to support formats fro some common used QC system, like testlink...

4.3.3. workspace_merger

workspace merger supports merging multiple workspaces to one workspace.

4.3.4. workspace_spliter

workspace merger supports splitting one workspace with multiple DUTs into multiple workspaces with one DUT.
